DtiCorp.com Is Introducing The New Honeywell MS3105K3052 Sylk-enabled Actuator

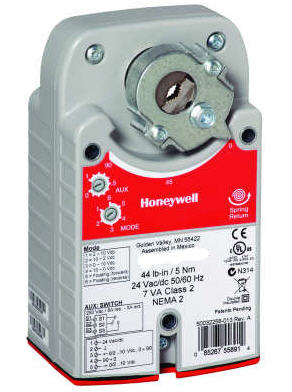

MIAMI - Feb. 23, 2015 - PRLog -- Popular online HVAC retailer (http://www.dticorp.com/) DtiCorp.com is introducing the brand new Honeywell MS3105K3052 Sylk-enabled Spring Return Actuator (http://www.dticorp.com/catalog/honeywell-ms3105k3052-sylkenabled-spring-return-actuator-p-160725.html). MS3103, MS3105, MS4103, MS 4105, MS7403, MS7405, MS7503, MS7505, MS8103, MS8105 Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating, and air-conditioning (HVAC) syst ems. They can drive a variety of quarter-turn, final control elements requiring spring return fail-safe operation.

Applications:

- Volume control dampers, mounted directly to the drive shaft or remotely (with the use of accessory hardware).

- Quarter-turn rotary valves, such as ball or butterfly valves mounted directly to the drive shaft.

- Linear stroke globe or cage valves mounted with linkages to provide linear actuation.

- Available with cable on select models.

Specifications:

- Device Weight: 3.5 lbs (1.60 kg)

- Ambient Operating Temperature:

    - 40° to 150°F (-40° to 65°C)

    - 22° to 150°F (-30° to 65°C) (Two position only)

- Shipping and Storage Temperature: -40° to +150°F (-40° to +65°C)

- Humidity Ratings: 5% to 95% R.H., Non-Condensing

- Electrical Connections: Field wiring 18 AWG (0.5 mm) to 14 AWG (1.5 mm) conductors (stranded or solid) and up to 2 - 14 AWG (1.5 mm) conductors (stranded), located under the removable access cover

- Auxiliary Switch (One SPDT):

     - Switch adjustable from 0-95°

     - 500 uA Resistive at 5 Vdc (minimum)

     - 250 Vac, 8 A resistive, 3 A inductive

- Mounting: Self-centering shaft adapter (shaft coupling):

     - Round damper shafts: 3/8 to 5/8 in. (9 to 16 mm)

     - Square damper shafts: 1/4 to 1/2 in. (6 to 13 mm)

- Minimum Damper Shaft Length:

     - 1 in. (25 mm); 3 in.(76 mm) recommended

- Cable Specification: 300 V, 75° C, Plenum Rated, 3 ft length from end of access cover

- Sylk Bus: Sylk is a two-wire, polarity insensitive bus that provides communications between a Sylk-enabled Zelix and a Sylk-enabled controller. For wiring, the Zelix Sylk-enabled actuator may be mounted up to 200 ft. (61 m) from the controller; twisted pair wire is recommended for wire runs longer than 100 ft. (30.5 m). Using Sylk-enabled actuators saves I/O on the controller and is faster and cheaper to install since the bus is polarity insensitive.
