ASME Heat Exchanger manufactured by BEPeterson for nylon process system

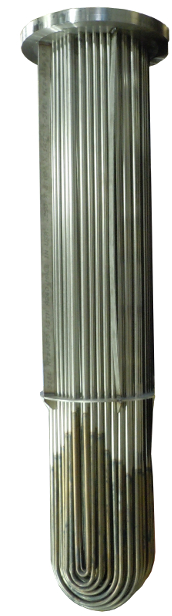

The vessel dimensions were 22" OD x 81.5" Straight Tube Length. The vessel and U-tube material of construction was SA-240-316L and SA-249-316L. The vessel was designed to 230 psi @ 600° F and Full Vacuum with an external jacket design of 86 PSI @ 600 Deg F.
The tube-to-tubesheet joints were welded and expanded per TEMA tolerances and liquid penetrant tested (PT). BEPeterson offers mechanical design and fabrication of custom shell and tube type heat exchangers manufactured in accordance with ASME Section VIII Division I. BEPeterson is an ISO 9001 certified manufacturer celebrating our 80th year in business. Our experienced in-house engineering staff can design and fabricate virtually any type of carbon steel and/or stainless steel shell and tube heat exchanger to meet specific size requirements.
Since 1935 BEPeterson has set the standard for custom metal fabrication of heavy-gauge metal parts and equipment. BEP has been relied on by our customers to provide complete engineering, design and project management of the most critical components. We are ISO 9001:2008 certified and ASME certified. Our 88,000 square foot facility with high ceiling bays is one of the largest in the Northeast.
BEPeterson is both a high volume contract manufacturer and a custom metal fabricator. BEP utilizes advanced manufacturing techniques and low cost material procurement to supply consistent and repeatable high quality products to our customers.
BEP manufactures Pressure Vessels, Tanks, ASME pressure vessels & tanks, ASME code and non-code vacuum chambers and vacuum furnaces, filter vessels, filter housings, skid assemblies, Co-gen ducting and a variety of industrial metal fabrications.
Buyers in the power and utilities, medical, chemical, environmental/
